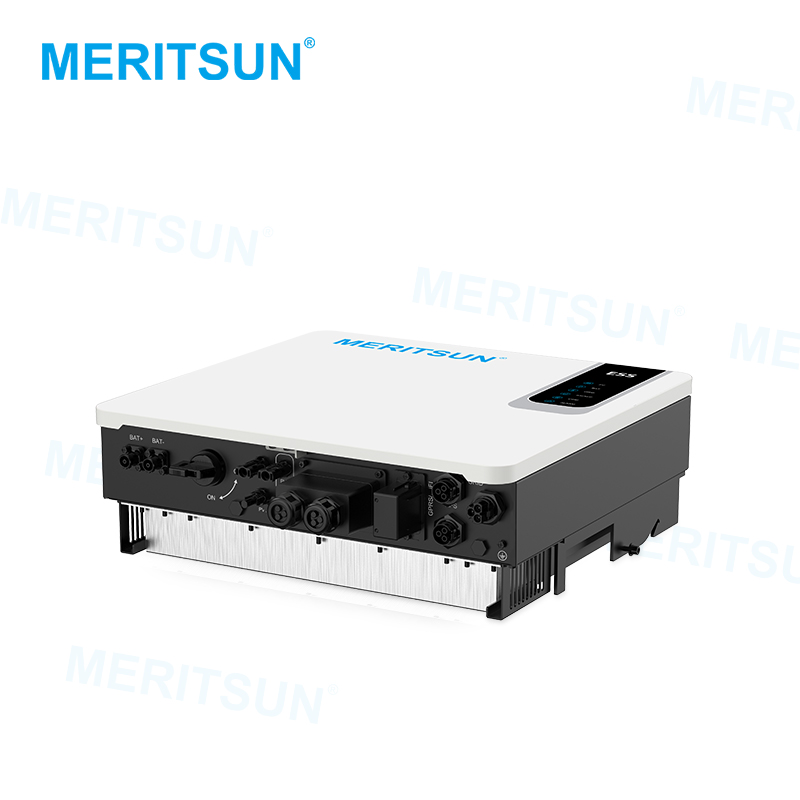

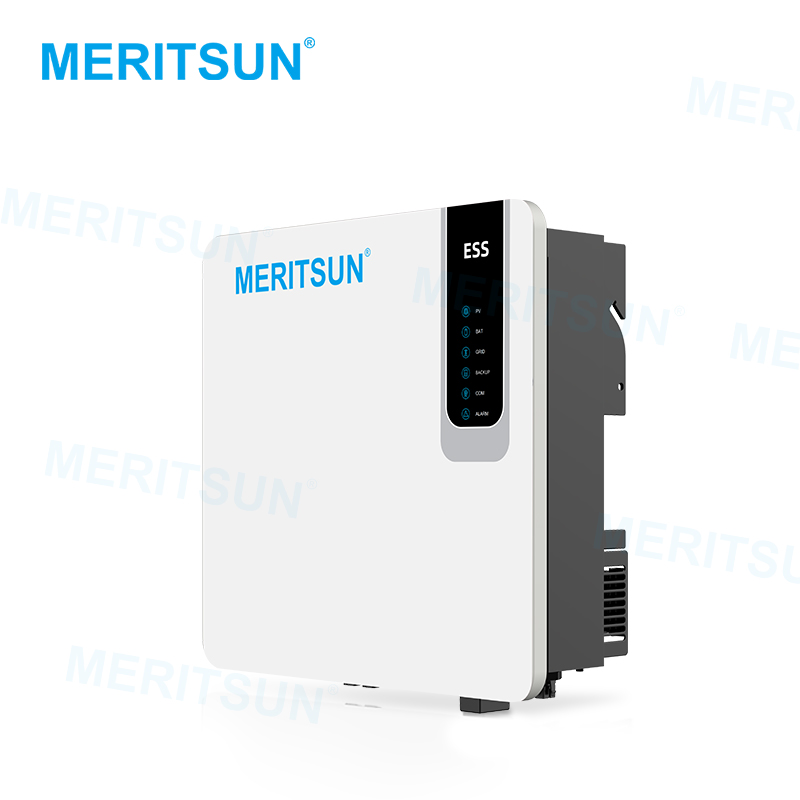

●The MeritSun Single Phase Hybrid ESS Inverter represents cutting-edge technology tailored for efficient solar power utilization. This compact and lightweight inverter is not only easy to install but also highly portable, ensuring hassle-free transportation. With prestigious certifications including VDE-AR N4105, IEC, AS, C10/11, 699/G100, CEI, and more, it guarantees top-notch quality and compliance with international standards.
●It supports four distinct energy modes, allowing users to tailor their energy consumption to meet diverse needs. Whether optimizing for grid connectivity, backup power, self-consumption, or time-of-use, this hybrid inverter offers a flexible and reliable solution. Embrace a new era of solar energy efficiency with the MeritSun Single Phase Hybrid ESS Inverter.

×

Type of Business *

Expected Battery Capacity（kWh） :

System Load Power（W） :

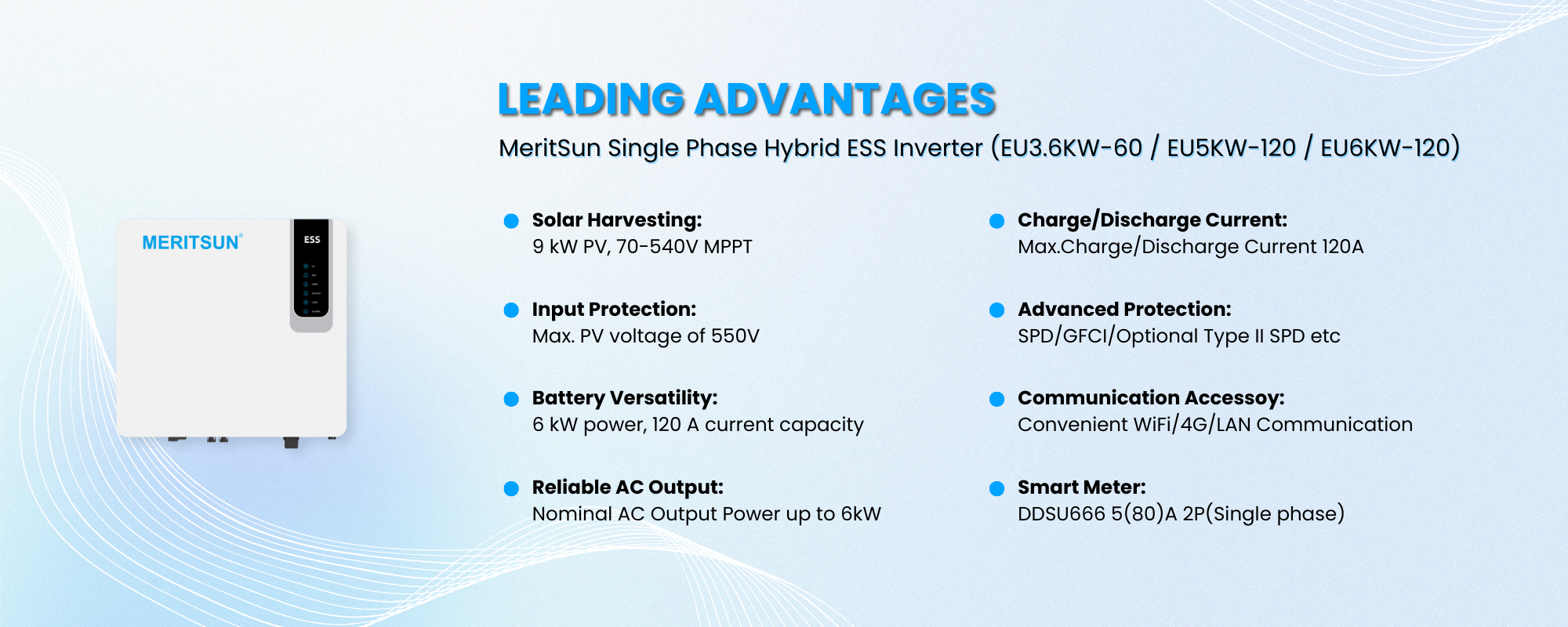

  • FEATURES


Maximized power, unwavering reliability

● Advanced Parallel Operation: Enhances scalability and performance.

● Intelligent Maintenance: Quick commissioning, 24/7 remote monitoring, and energy-efficient customization.

● Optional Generator and Smart Load: Flexible integration for efficient power management.

● High Efficiency and Input Power: 97.3% PV to grid efficiency, 9000W maximum input power.

● Versatile Current Handling: Supports high-power solar modules, 2*15A PV current, and 120A charge/discharge.

● Remote Configuration and Upgrade: Enables easy maintenance and optimization.

● Multiple Protections: SPD and GFCI for enhanced safety.

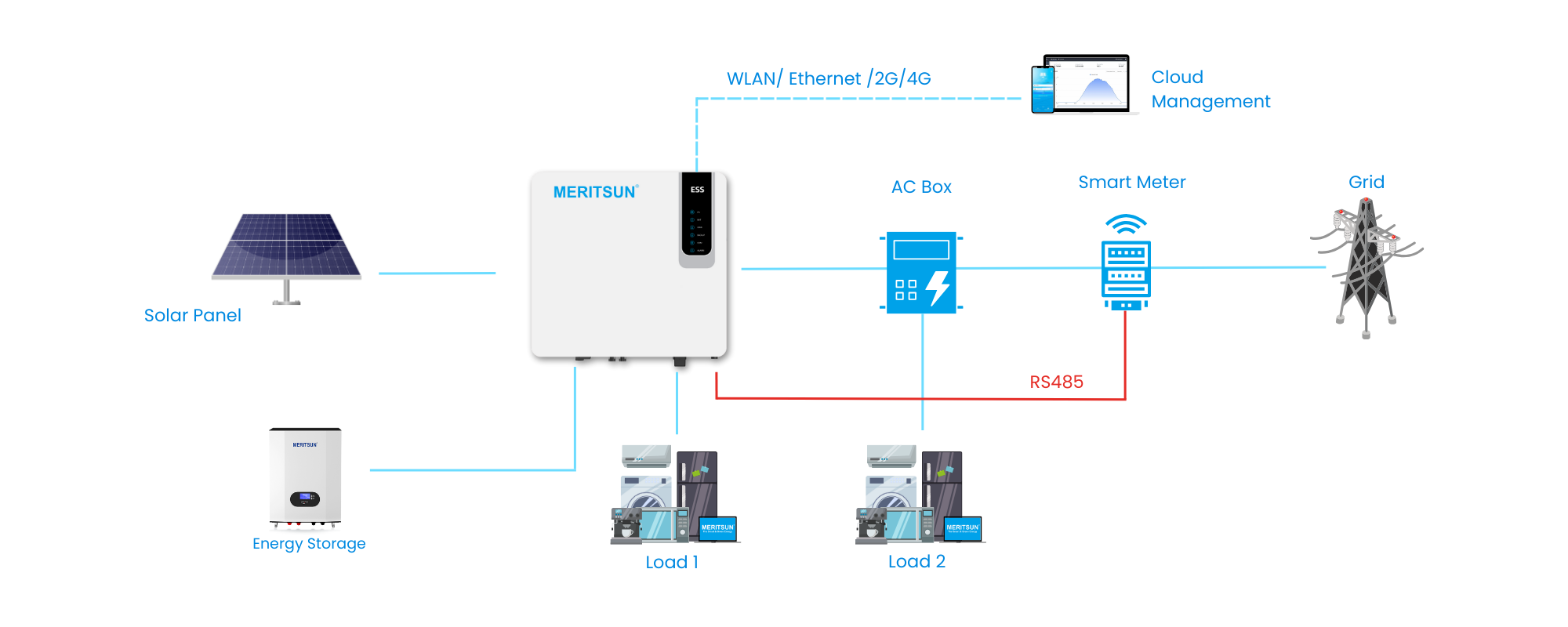

  • System Schematic

Maximize Efficiency, Maximize Power

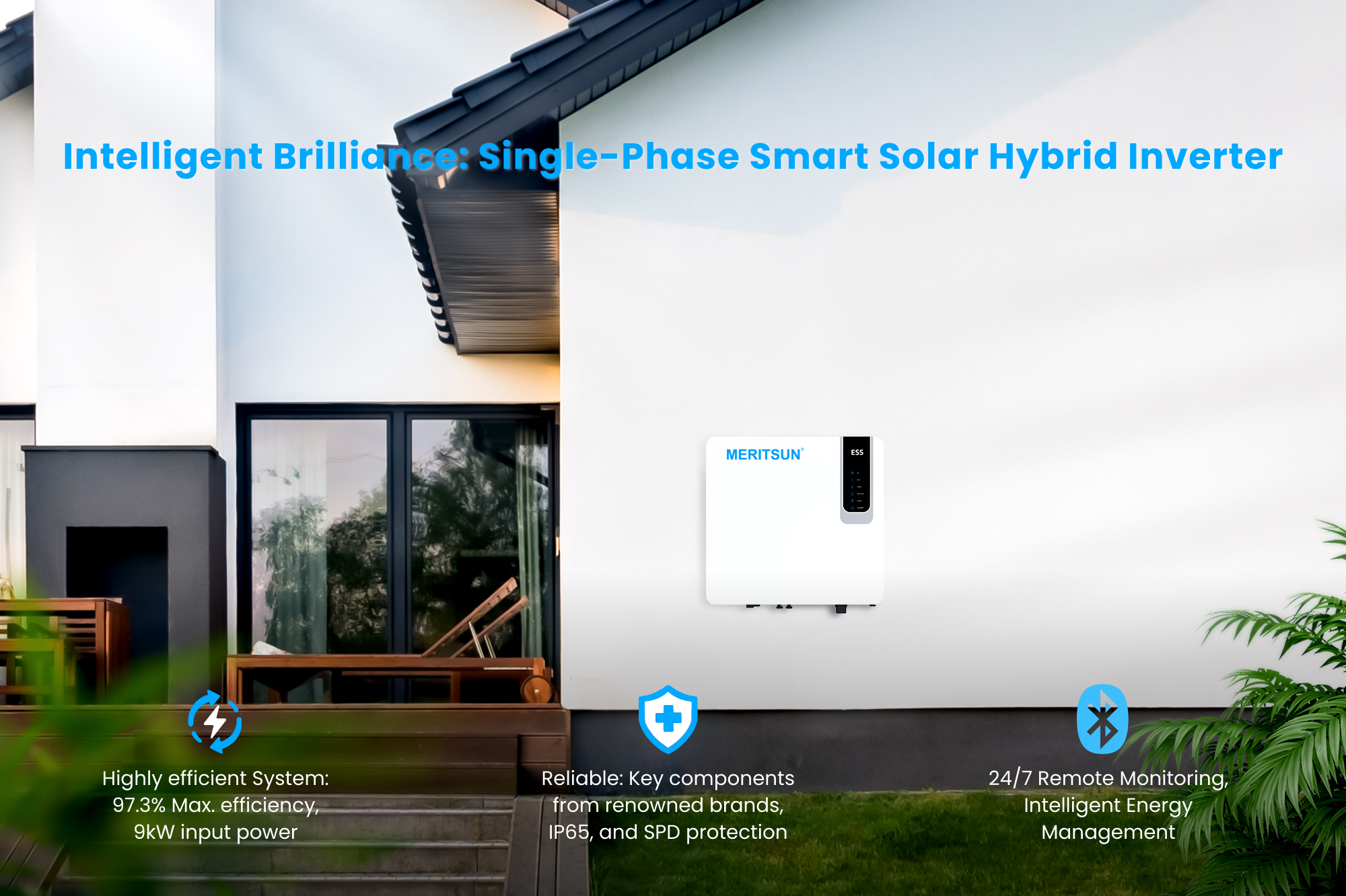

Achieve peak energy conversion with MeritSun Single Phase Hybrid ESS Inverter impressive 97.3% maximum efficiency. Benefit from a high battery efficiency of 94.3%, supporting up to 9kW PV input power for compatibility with high-power solar panels. The large Maximum Power Point Tracking (MPPT) current ensures efficient power tracking, optimizing overall performance.

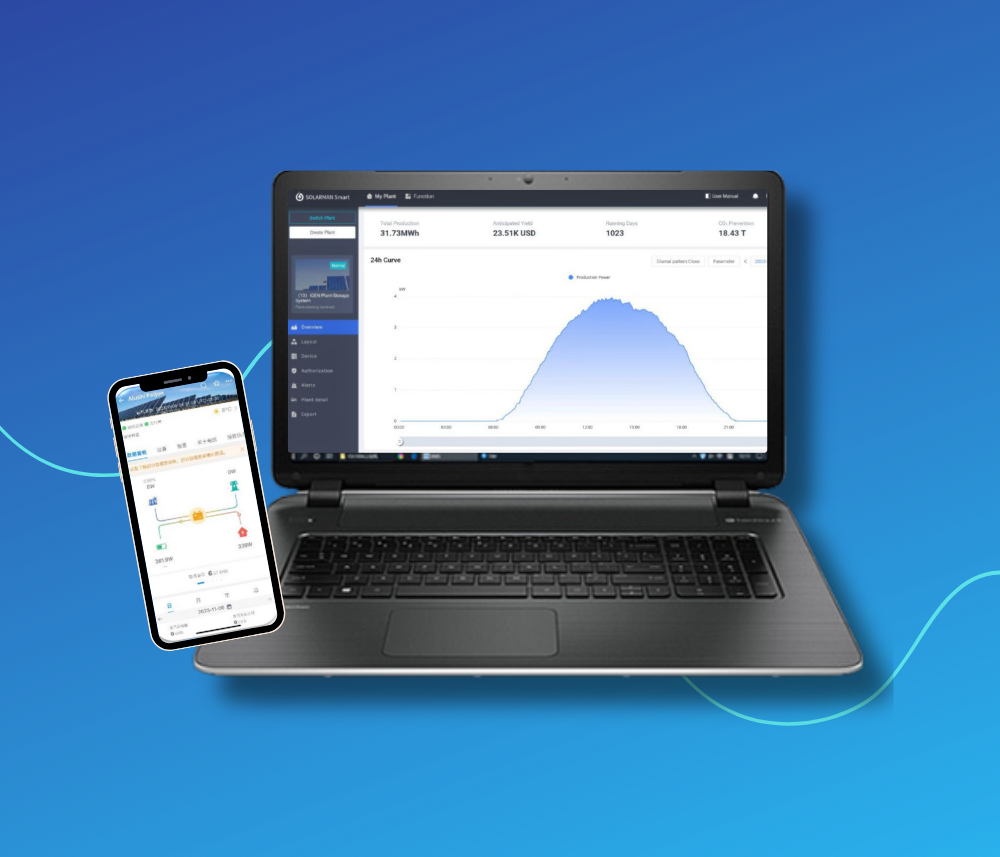

Seamless Energy Management and Remote Control

The inverter provides 24/7 remote monitoring, quick mobile app commissioning, and customizable energy management. It supports remote configuration, battery connectivity, Australian DRM compliance, and export power control. With versatile communication options (RS485, WiFi, GPRS) and reserved ports, it ensures efficient energy management.

Four Modes, Limitless Possibilities

It stands out with four versatile modes: self-use optimizes grid usage, backup options enhance reliability in unstable grids, off-grid ensures stability during outages, and time-based control adapts to varying energy prices with flexible settings.

  • PRODUCT SPECIFICATION

Max. PV lnput Power Max. PV Voltage Nominal Battery
Voltage		 Max.charge/
Discharge Current		 Max.Charge/
Discharge Power		 Nominal Output Power Dimensions
(W*H*D)		 Weight
6300W 550V 48V 60A/60A 3000W/3000W 3000W 570mm*495mm*175mm 20Kg
9000W 550V 48V 120A/120A 6000W/6000W 5000W 570mm*495mm*175mm 25Kg
6300W 550V 48V 120A/120A 6000W/6000W 6000W 570mm*495mm*175mm 25Kg

For more model and specification information, please contact us......
