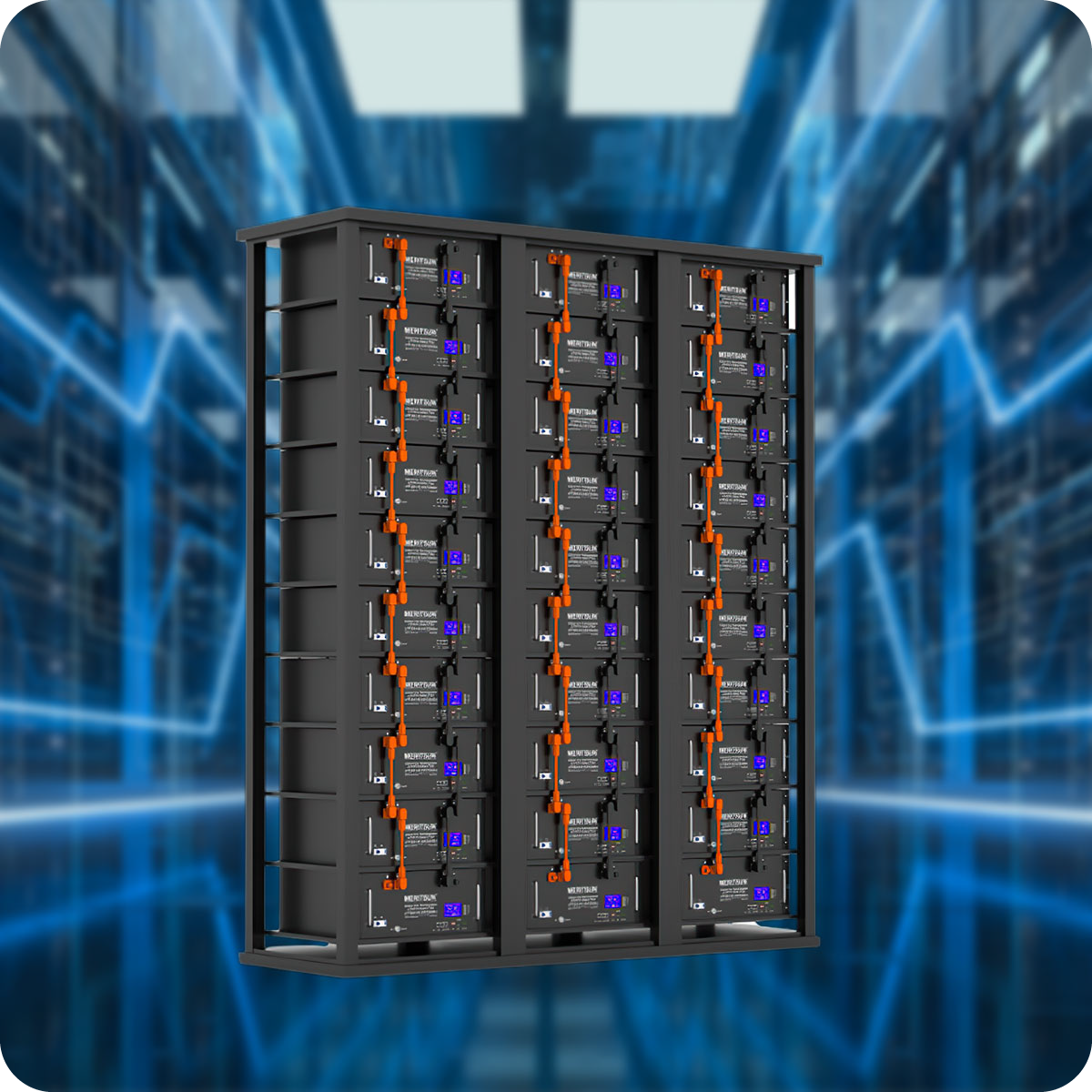

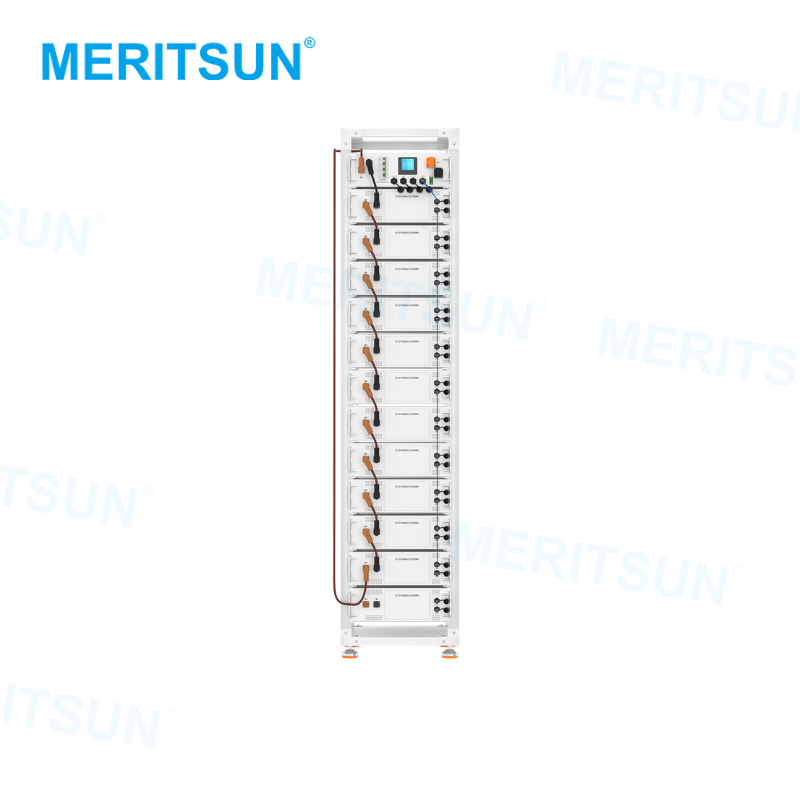

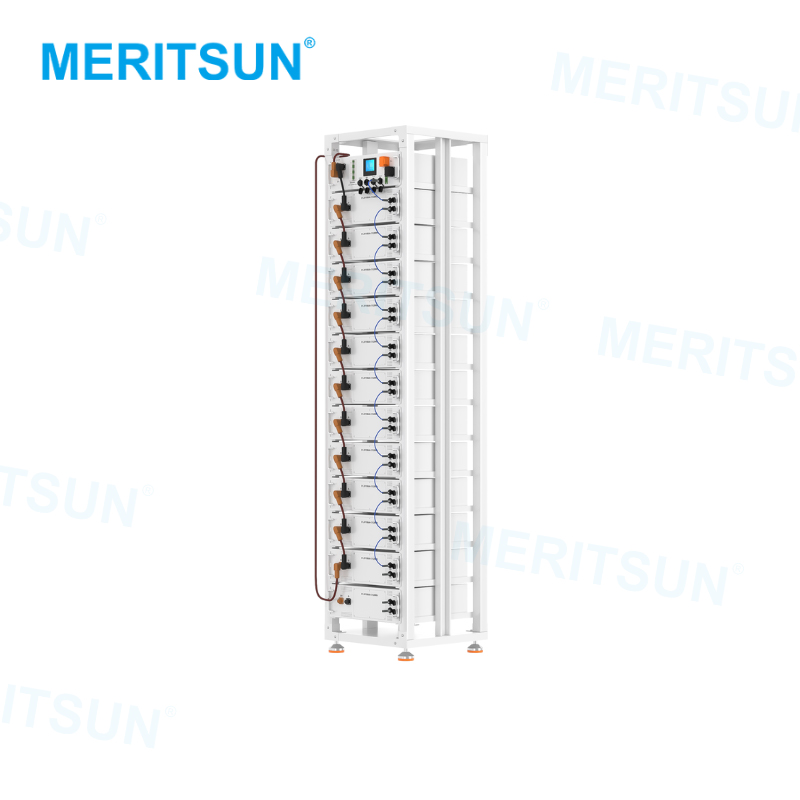

High-volt Rack Module Series

●MeritSun's comprehensive energy storage solution is expertly designed for UPS and commercial applications, encompassing battery modules, an advanced Battery Management System (CBMS), and a well-thought-out battery cabinet assembly. This holistic approach ensures highly efficient and effective energy storage.
●MeritSun offers professional customization services to tailor this battery solution to your specific energy storage needs.
●Engineered for peak performance, it prioritizes safety, environmental sustainability, stability, reliability, and a lengthy lifespan. Its flexible design accommodates diverse energy storage requirements, effectively addressing issues such as distribution capacity limitations, energy consumption variations, and power quality enhancements.
●Designed with scalability in mind, the stackable configuration is especially suited for large-scale high-voltage solar power generation systems.

×

Type of Business *

Expected Battery Capacity（kWh） :

System Load Power（W） :

  • FEATURES

A LiFePO4 battery solution designed for UPS or commercial energy storage systems:

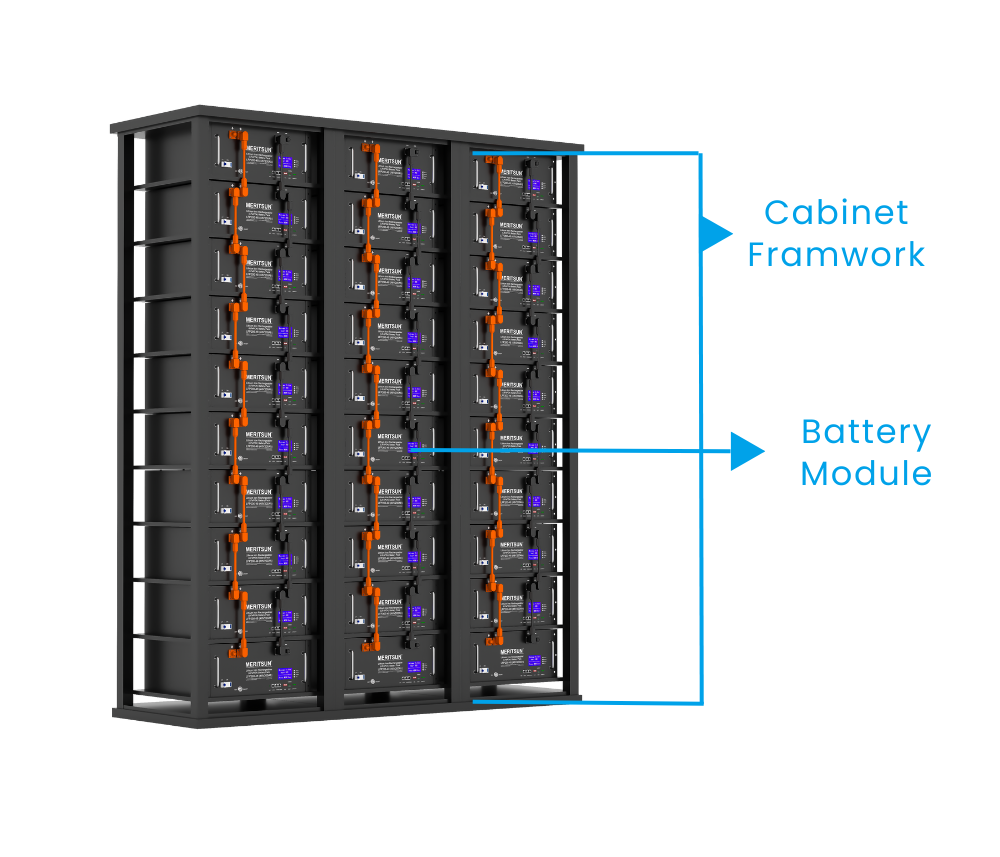

● Complete Framework: It consists of battery modules, CBMS, and battery cabinet assembly.

● Ultimate Performance: Offers exceptional flexibility and advantages such as safety, environmental friendliness, stability, reliability, long lifespan, convenience, and flexibility.

● Best Solution: Provides customized solutions suitable for specific scenarios to address issues such as insufficient distribution capacity, large differences in energy consumption, and poor power quality.

● Customized Large Capacity: Perfect for large-scale high-voltage solar power generation systems, our stackable design fulfills high-capacity energy storage demands.

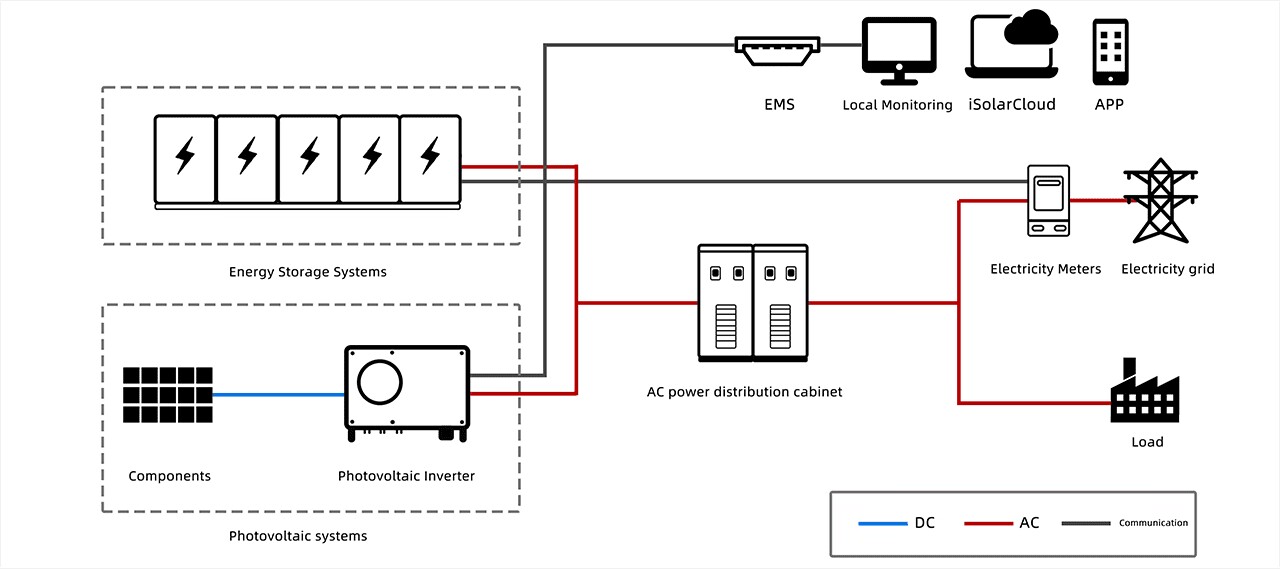

  • Core Application Topology

Sophisticated Customization for Battery Modules

The High-volt Rack Module is a tailored energy storage solution. It integrates batteries, the main control CBMS, and a cabinet to create a personalized battery energy storage solution that aligns with your specific requirements. This configuration offers exceptional flexibility and adaptability, allowing for modifications and adjustments to meet evolving needs and circumstances.

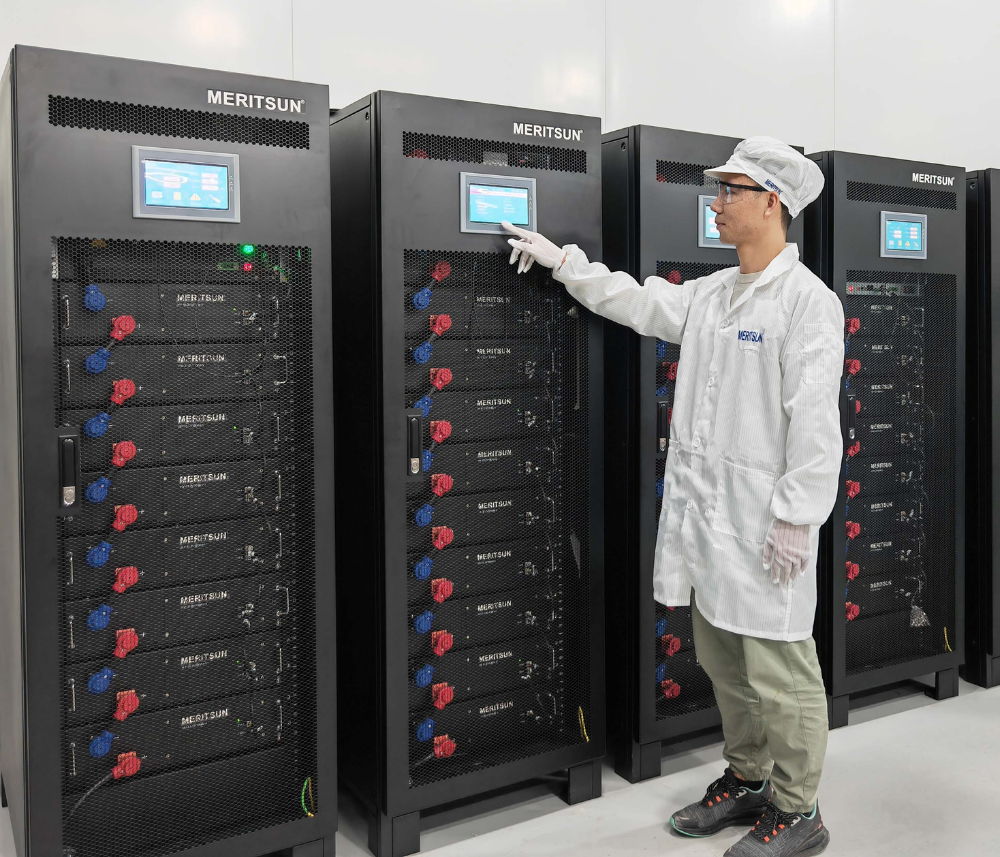

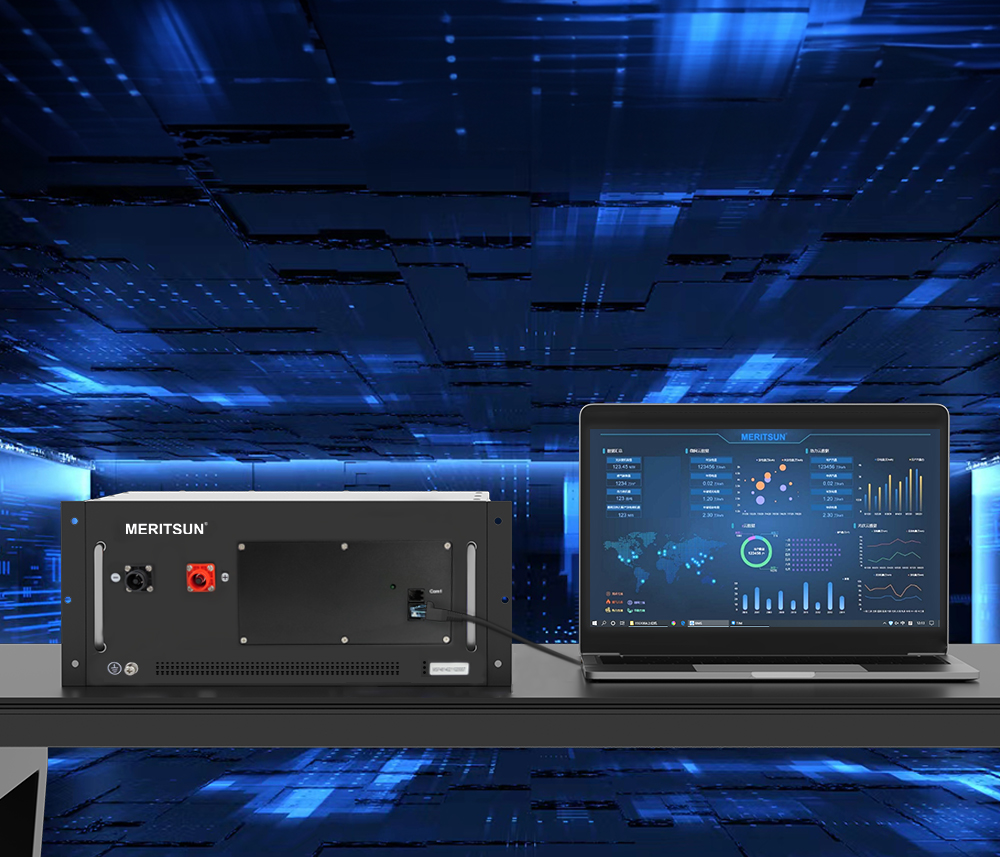

Versatile Communication and Display for Energy Storage Units

Enable precise and comprehensive monitoring of small-scale commercial and industrial energy storage units by offering support for LCD screens, as well as RS232, RS485, and CAN communication monitoring on a PC.

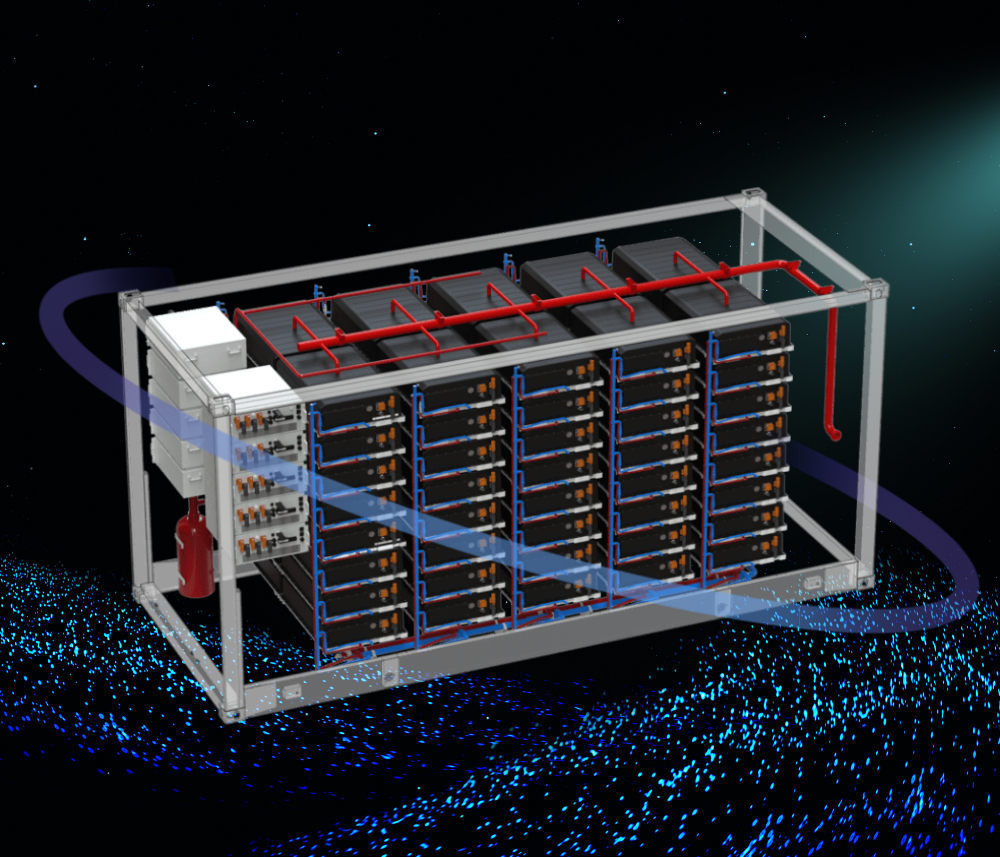

Liquid Cooling for Better Performance, Safety, and Efficiency

MeritSun Opts for a sophisticated modular design with liquid cooling， their pre-assembled, factory-tested components streamline installation, reduce costs, and optimize energy dissipation, enhancing overall reliability. Although liquid cooling systems are more complex, they efficiently dissipate heat, maintain stable battery temperatures, and improve energy storage efficiency, making them the preferred choice for MeritSun's commercial lithium-ion battery energy storage equipment.

Extensive Use and Flexible Configuration

Emphasizes extensive utilization and adaptable configuration, featuring a modular design that allows for versatile power and energy settings adjustments. It excels in grid support and can operate in grid-forming mode when needed. Additionally, it is designed with a high degree of resilience, boasting both NEMA 3R and IP54 ratings to ensure durability and protection against environmental elements.

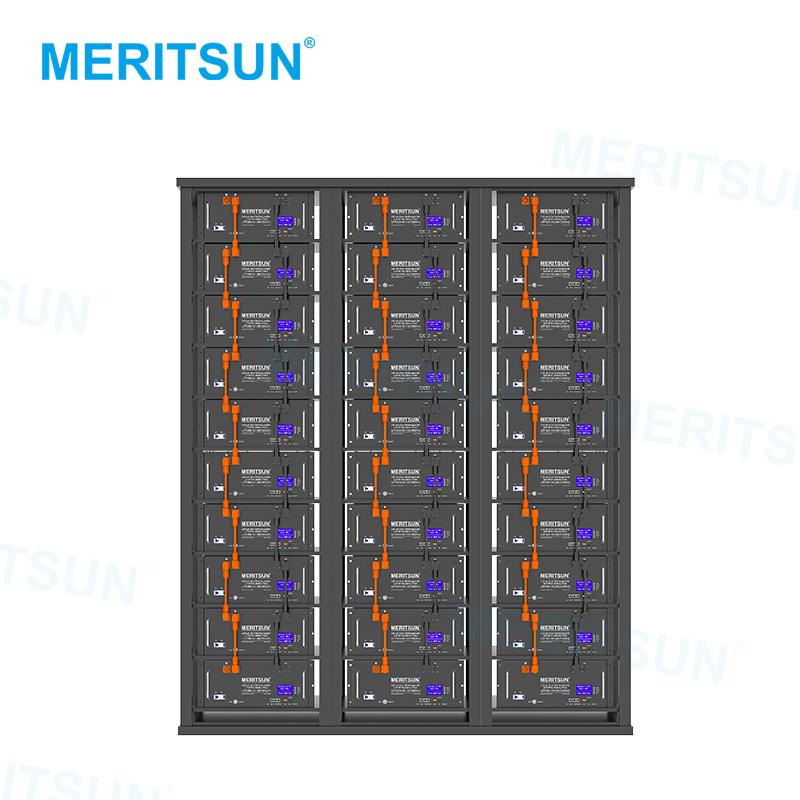

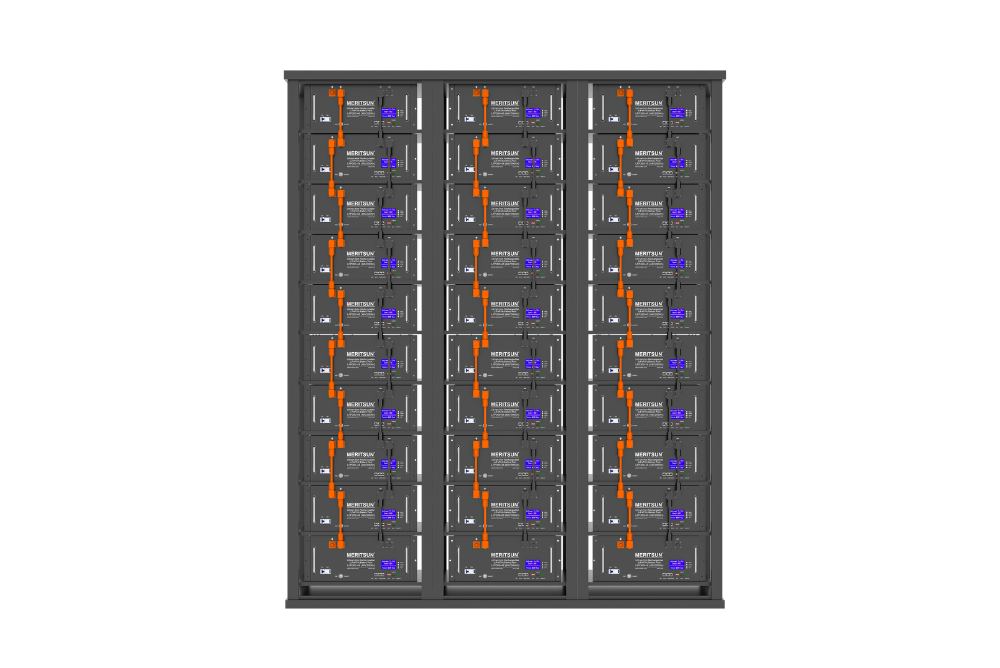

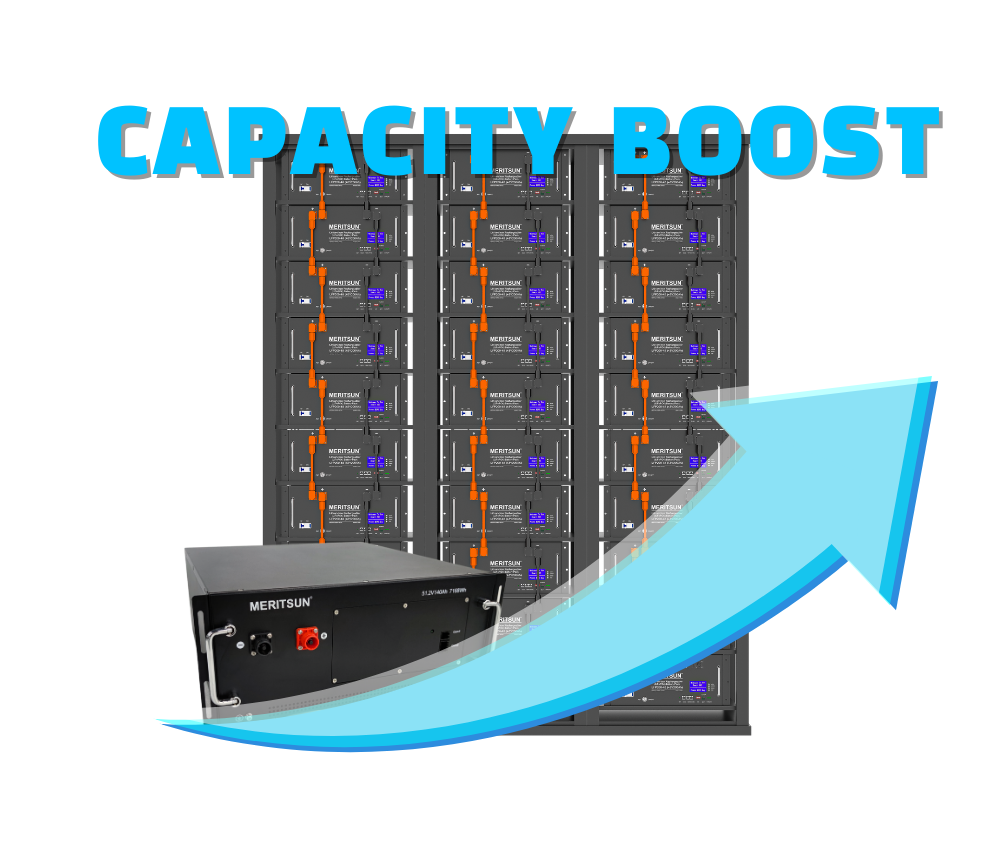

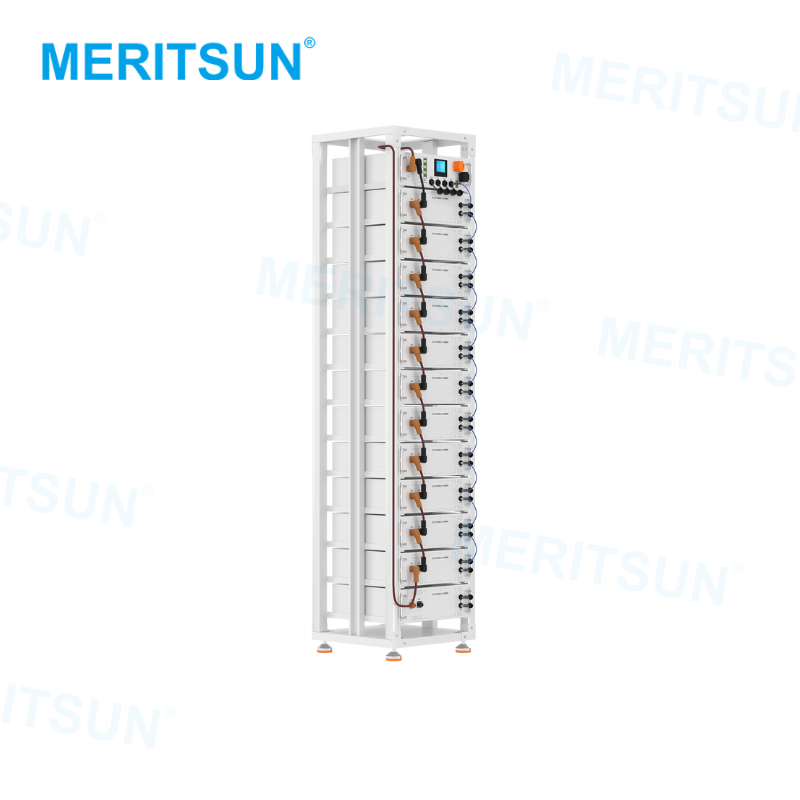

Capacity Boost: Streamlined Rack-Mounted Solution

A versatile solution for capacity expansion allows seamless interconnection of up to 7 battery modules per single HVB. Interconnecting these units amplifies capacity, effectively catering to diverse energy storage requirements in a convenient, one-stop approach.

  • PRODUCT SPECIFICATION

Model RACK HVBOX 7S RACK HVBOX 11S

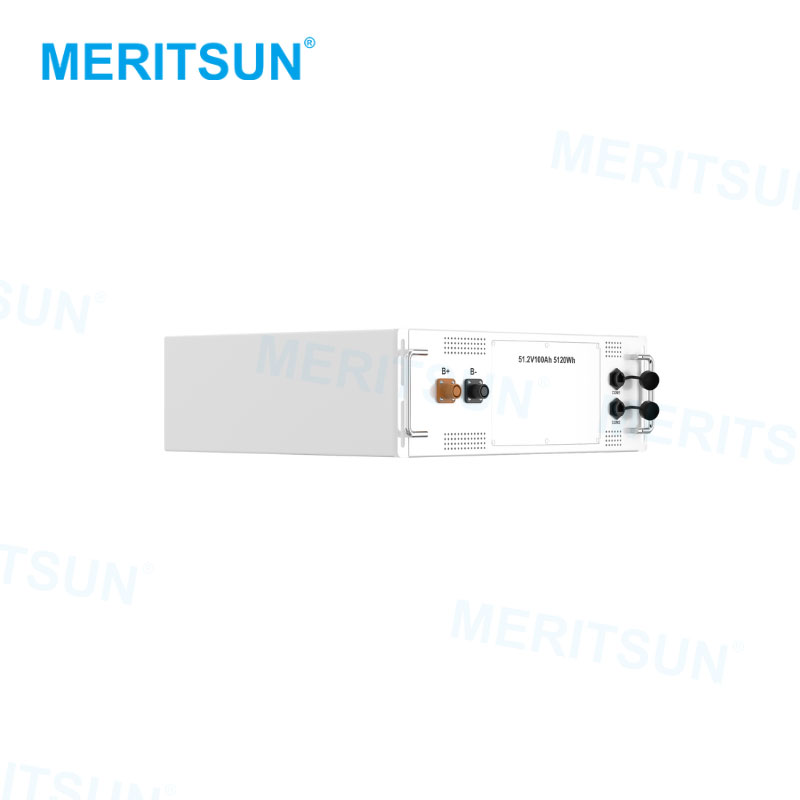

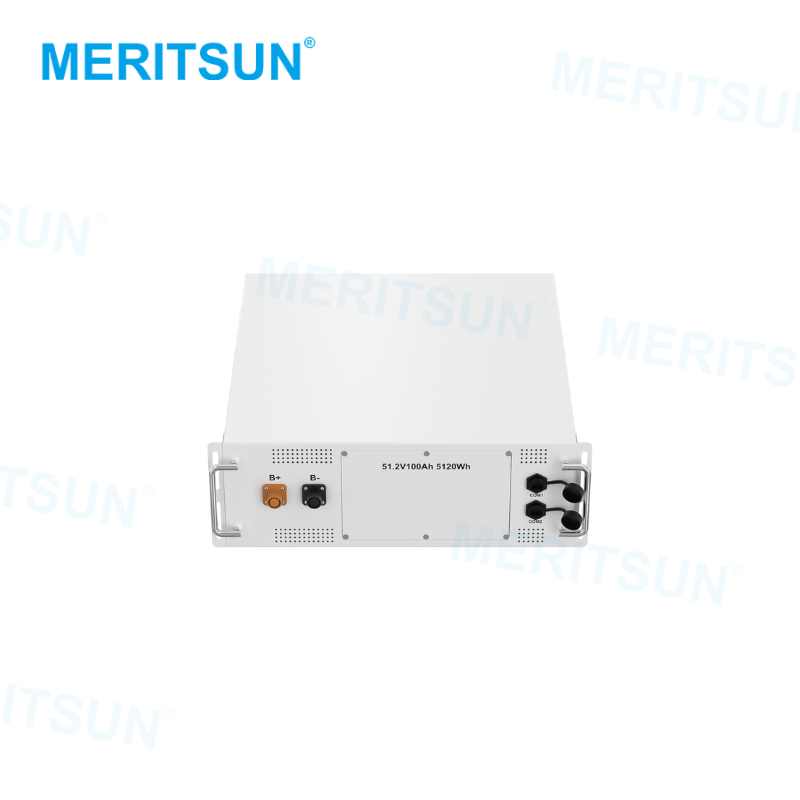

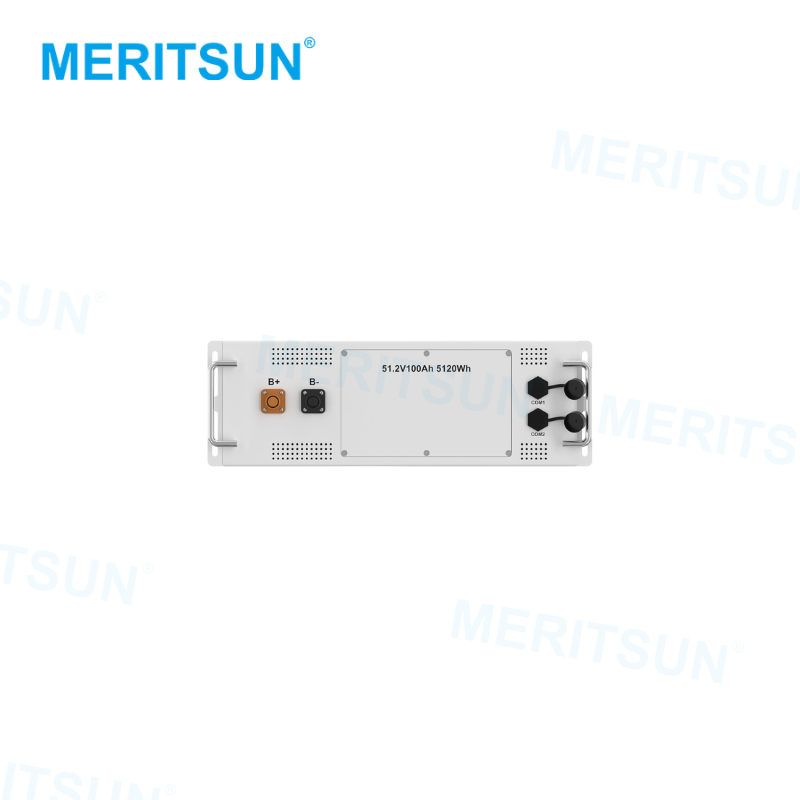

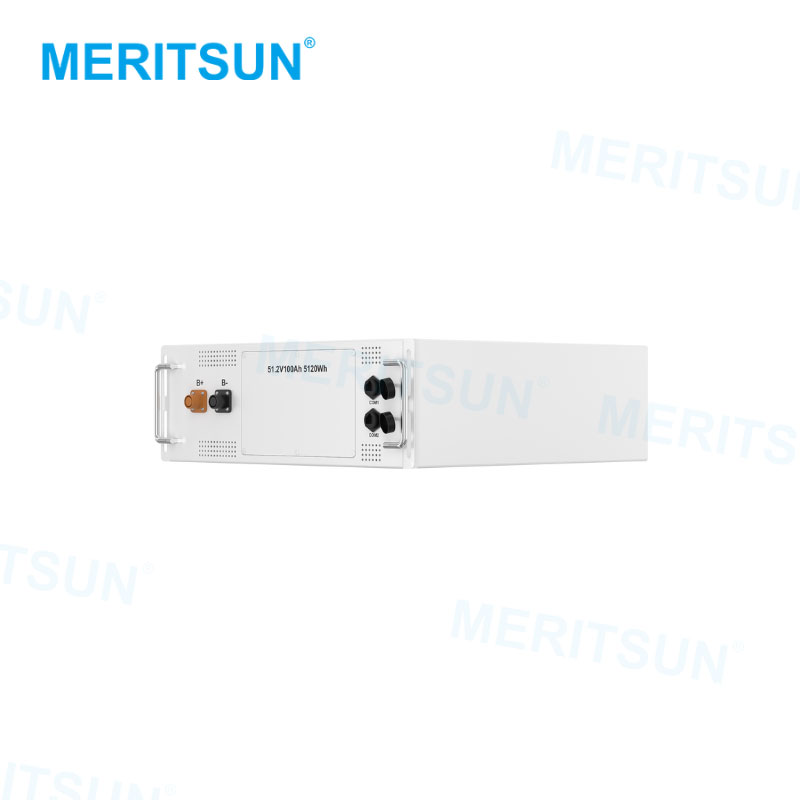

Battery Module Type HV51100 HV51100
Battery Module Quantity 7 units 11 units
Nominal Battery Energy 35.84kWh 56.32kWh
Nominal Capacity 100Ah 100Ah
Nominal Voltage 358.4V 563.2V

For more model and specification information, please contact us......

Industrial/Commerical Solar Series

h

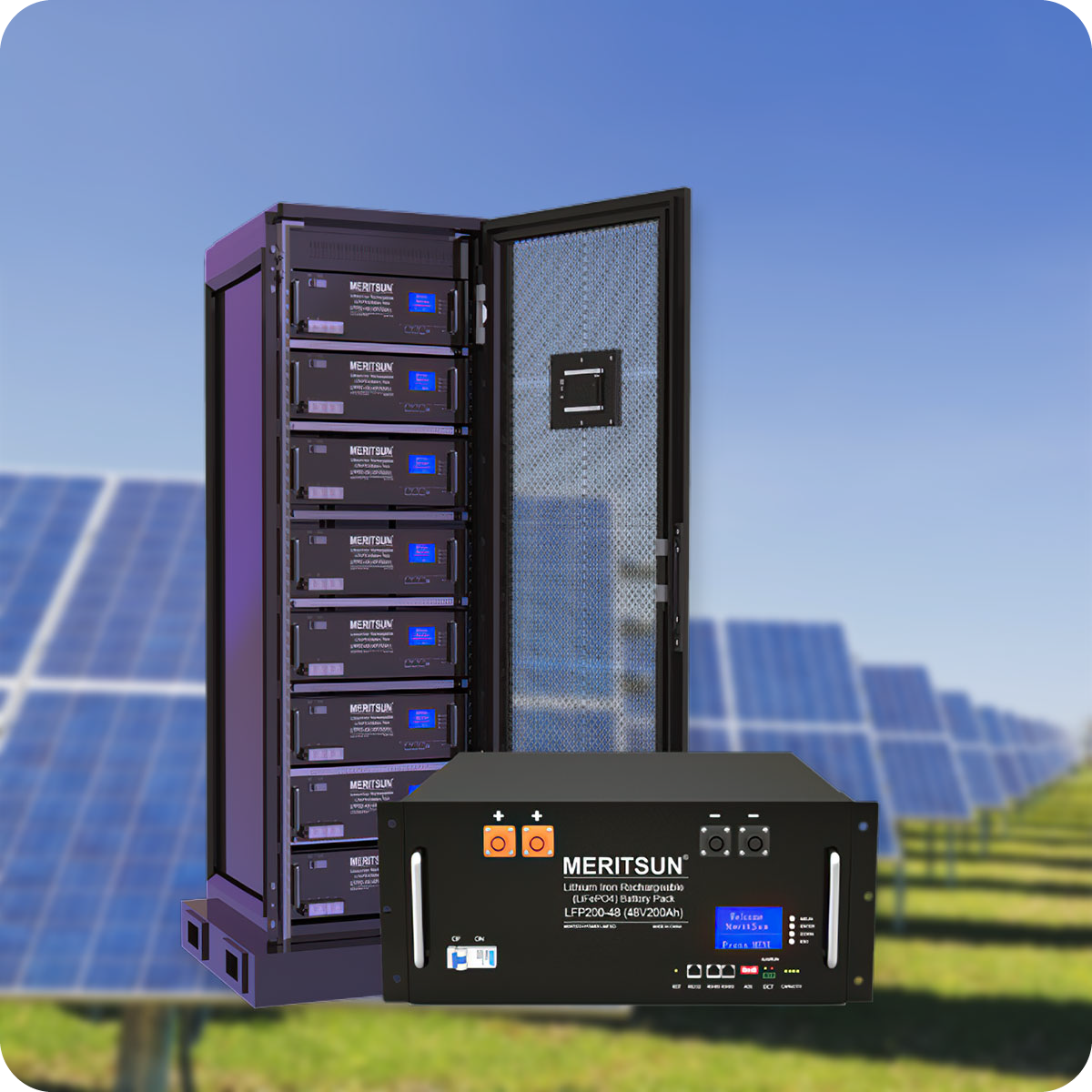

Serve Rack Module series
h
High-volt Rack Module Series
h

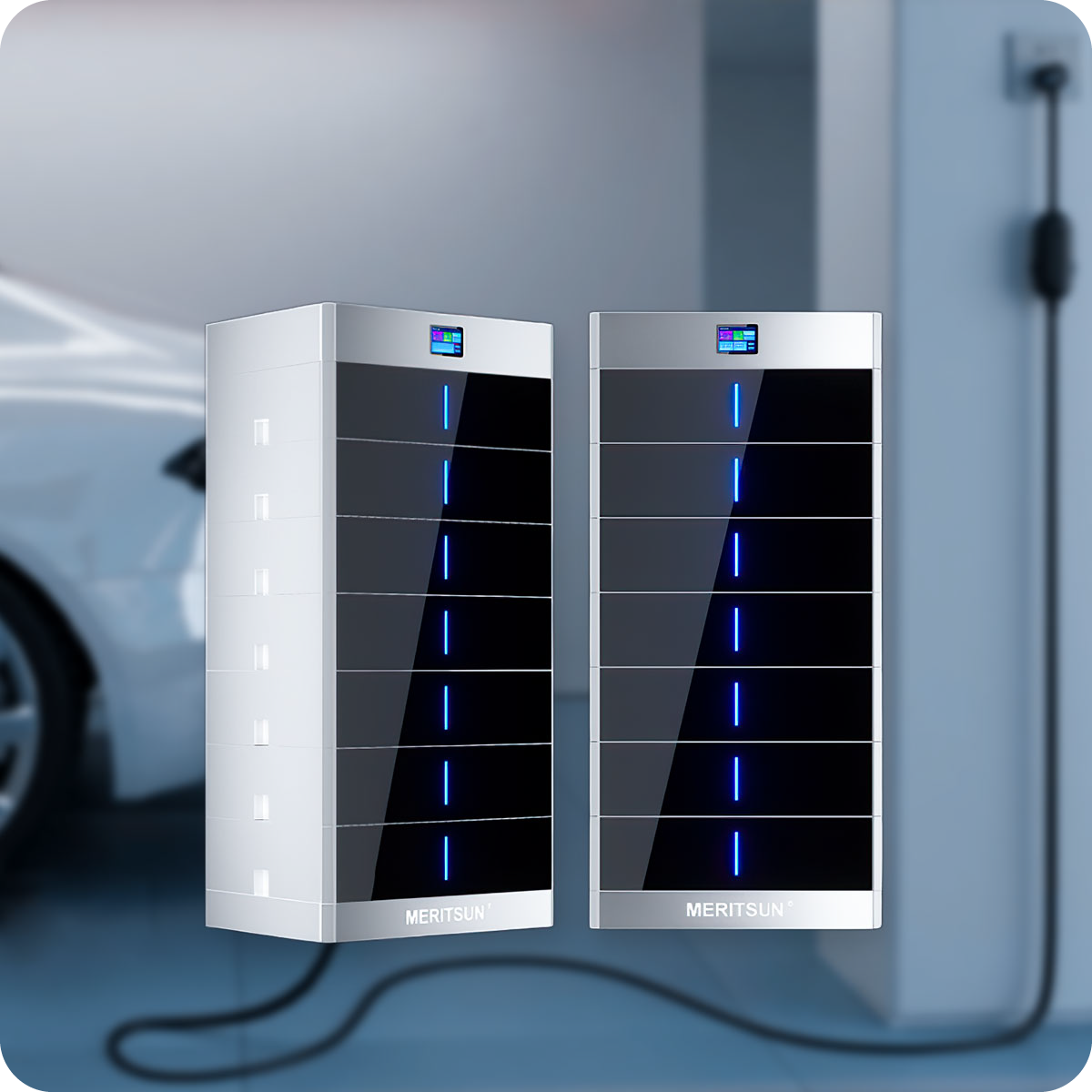

HV-Power MAX-L
